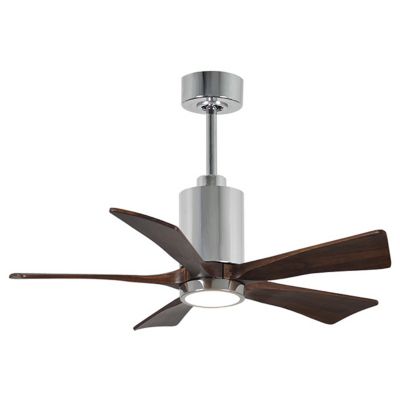

Patricia 5-Blade LED Ceiling Fan

Dimensions

• Canopy
  Height 2", Diameter 6"
• Fixture
  Height 14", Blade Diameter 42", Weight 19Lbs
• Maximum Hanging
  Length Adjustable From 19", Adjustable To 86"

Details

• Material
  Cast Aluminum, Heavy Stamped Steel Body and Solid Wood Blades
• Shade Material
  Glass
• Sloped Ceiling Adaptable
  Yes
• Canopy Shape
  Round
• Installation Type
  Stem
• Blade Pitch
  15
• Number of Blades
  5
• Control Type
  Wall/Handheld Combo
• Reverse Function Control Location
  Reverse switch on Control
• Number of Fan Speeds Forward/Reverse
  6
• Motor Type
  DC
• Finish
  Polished Chrome
• Location Rating
  ETL Listed Damp
• Title 20
  This design is compliant with California's rigorous Title 20 energy efficiency mandate.
•
  OK for Outdoor Use
• Assembly Required
  Yes
• Warranty
  Limited Lifetime
• Made In
  China
• Made from Sustainably Sourced Materials
  This design is produced using responsibly harvested, reclaimed or alternative materials.
• Recyclable
  This design may be broken down and recycled.
• Lighting Style
  Downlight
•
  Commercial/Residential use
•
  Combines innovation with simple, refined design
•
  Robust construction with solid wood, machine-cut blades
•
  Silent motor operation
•
  Compatible with flat or vaulted ceilings
•
  Optional light cap
•
  Not recommended for salt water/ocean front applications
•
  Includes 6-Speed RF Remote in black and 6-speed Wireless Decora-Style Wall Control in white
•
  Motor speed ranges from 53 to 243 RPM (42"); 51 to 169 RPM (52"); 51 to 93 RPM (60")
•
  Cubic Feet Per Minute Airflow - Low Speed: 917 (42"); 1398 (52"); 3247 (60")
•
  Cubic Feet Per Minute Airflow - Average Speed: 3087 (42"); 3949 (52"); 4842 (60")
•
  Cubic Feet Per Minute Airflow - High Speed: 5256 (42"); 6499 (52"); 6437 (60")
•
  Electricity Use - High Speed: 30.47W (42"); 31.8W (52"); 31.64W (60")
•
  60,000 hrs. LED Life Expectancy
•
  Cubic Feet Per Minute Per Watt - Average: 170 (42"); 251 (52"); 224 (60")
•
  Control Frequency 110V: 304Mhz
•
  Control Frequency 220V: 434Mhz
•
  Remote Control FCC ID: CHQ7255T
•
  Wall Control FCC ID: CHQ9053T
•
  LED Life Expectancy: 30,000 hours
•
  CPSC - 15 U.S. Code 1278a Compliant
•
  Adjustable Lumens and Color Temperature
•
  Reverse switch on Control

Lighting

• Total Lumens
  1234.0
• Volts
  120
• Color Temp
  6500 (Daylight)
• Light Source
  Integrated LED Module
• CRI
  90
• Total Wattage
  16.00

More Information

• Dust with a dry soft cloth.
