Key Features
Diagrams

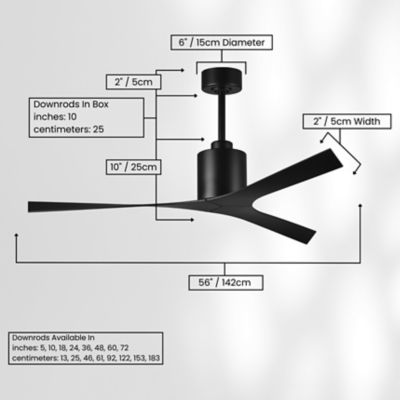

Dimensions
- BladeWidth 2", Diameter 56"
- CanopyHeight 2", Diameter 6"
- ItemHeight 12", Diameter 56", Weight 17Lbs
Details
- MaterialCast Aluminum, Heavy Stamped Steel
- Sloped Ceiling AdaptableYes
- Blade Pitch45
- Number of Blades3
- Reversible fan blades1
- Control TypeWall/Handheld Combo
- Number of Fan Speeds Forward/Reverse6
- Motor TypeDC
- FinishMatte Black
- Location RatingETL Listed Wet
- Title 20This design is compliant with California's rigorous Title 20 energy efficiency mandate.
- OK for Outdoor Use
- Assembly RequiredYes
- WarrantyLimited Lifetime
- Made InChina
- Commercial and/or Residential Use
- Silent operation
- Hand-held remote and Decora-style wall-mounted 6-speed wireless controls included
- Vaulted ceiling canopy for up to 30 degrees
- IP21 Rating
- Recommended Room Size: Oversized: Rooms over 400 square foot 56 inches or larger blade span
- Compatible Parts and Accessories(Not Included): Atlas Downrod Lengths - 5-inch, 10-inch, 20-inch, 30-inch, 48-inch, 72-inch
- Not recommended for coastal, saltwater and chlorine locations
- Only compatible with included controllers
- Amps: 0.41
- Adjustable Height
- CFM (High): 3651
- CFM (Low): 1556
- CFM (Average): 2604
- Control Frequency 110V: 304Mhz
- Control Frequency 220V: 434Mhz
- Remote Control FCC ID: CHQRH787T
- Wall Control FCC ID: CHQ9053T
- RPM: Low: 49/ High: 113
- CPSC - 15 U.S. Code 1278a Compliant
- Reversible Fan Blades
- Motor Speed: 116 RPM
- Fan Airflow Efficiency (at high speed): 126 CFM/Watt
Lighting
- Volts110 Volt
- Lamp TypeXenon
More Information
- Dust with a dry soft cloth.
