Dagny Dual Rotational Ceiling Fan by Atlas Fan Company
1 of 24 | Dagny Dual Rotational Ceiling Fan
1 of 24 | Dagny Dual Rotational Ceiling Fan
Key Features
Lifetime limited warranty
Sloped Ceiling Adaptable
OK For Outdoor Use
Eco-Friendly
Made in China
The Atlas by Matthews Fan Co. Dagny Dual Rotational Ceiling Fan takes the retro aesthetic to a whole new level of cool. Dagny is available with metal blades (with metal blade guards), or with solid wood blades (without blade guards). Each fan head can be infinitely positioned in 180-degree arcs for optimum air movement. The greater the angle, the faster the axial rotation, with 60 degrees being optimal.
Item Number
ATL2247486
.
MFR ID
DG-TB-WD

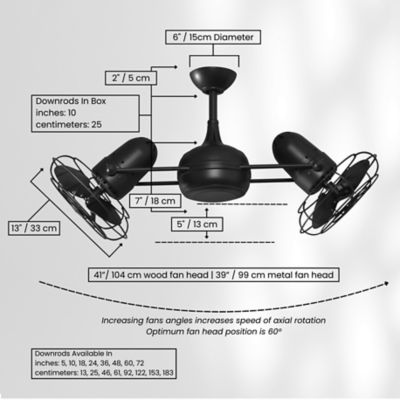

Dagny Dual Rotational Ceiling FanTechnical Files and Diagrams
Diagrams
Dagny Dual Rotational Ceiling Fan Technical Files and Diagrams
Diagrams
Dimensions
- BladeWidth 16", Diameter 16"
- CanopyHeight 2", Diameter 6"
- FixtureHeight 14", Diameter 41", Weight 22Lbs
- Maximum HangingLength Adjustable From 14", Adjustable To 24"
Details
- MaterialCast Aluminum, Heavy Stamped Steel (Body) with Steel/ABS or Wood (Blades)
- Sloped Ceiling AdaptableYes
- Blade Pitch19
- Number of Blades6
- Control TypeHandheld
- Motor TypeAC
- 'Includes One 10.00 in. stem/downrods
- FinishTextured Bronze
- Location RatingUL Listed Damp
- Title 20This design is compliant with California's rigorous Title 20 energy efficiency mandate.
- ÂOK for Outdoor Use
- Assembly RequiredYes
- WarrantyLifetime limited
- Made InChina
- Made from Sustainably Sourced MaterialsThis design is produced using responsibly harvested, reclaimed or alternative materials.
- RecyclableThis design may be broken down and recycled.
- ÂCommercial/Residential use
- ÂIncreasing angles of fan head to support poles increases speed of axial rotation
- ÂDecorative cages on the metal blades
- ÂIncludes 3-speed RF remote control in black
- ÂNot recommended for coastal, saltwater and chlorine locations
- ÂDamp locations for all finishes. Neither coastal, saltwater nor chlorine compatible
- ÂCubic Feet Per Minute Airflow - Low: 2565 (Wood); 2199 (Metal)
- ÂCubic Feet Per Minute Airflow - Average: 3367 (Wood); 2684 (Metal)
- ÂCubic Feet Per Minute Airflow - High: 4168 (Wood); 3169 (Metal)
- ÂElectricity Use - Average: 87.26W (Wood); 80.69W (Metal)
- ÂCubic Feet Per Minute Per Watt - Average: 50 (Wood); 42 (Metal)
- Â360 degrees rotation
- ÂControl Frequency 110V: 304Mhz
- ÂControl Frequency 220V: 434Mhz
- ÂRemote Control FCC ID: CHQ7082T
- ÂMedium: rooms 76-144 square feet, 36-42 inch blade span
- ÂCPSC - 15 U.S. Code 1278a Compliant
- ÂIP20 rating
- ÂBody: Textured Bronze
Lighting
- Volts110 Volt
- Lamp TypeXenon
More Information
- Dust with a dry soft cloth
Manufacturer IDs:
