Suspenders™ 36" 5-Bar Zig Zag LED Suspension by SONNEMAN Lighting
Suspenders™ 36" 5-Bar Zig Zag LED Suspension
by Robert Sonneman for SONNEMAN Lighting
1.0(1) Write a Review
1 of 13 | Suspenders™ 36" 5-Bar Zig Zag LED Suspension
1 of 13 | Suspenders™ 36" 5-Bar Zig Zag LED Suspension
Key Features
Ships To Canada
Dimmable
Contract Grade
1 Year. 5 Year LED Components warranty
Made in China
As its name would imply, the Suspenders™ 36” 5-Bar Zig Zag LED Suspension by SONNEMAN Lighting zig-zags across your ceiling in an elaborate, yet highly customizable display of energy-efficient lighting. Its starting design consists of five 36” Power Bars (3 higher bars reinforcing 2 lower bars) that each suspend a mixture of clustered and single LED luminaires (via adjustable 12” hangers). The bars themselves are supported by two 18" field-cuttable hangers that connect to a ceiling-mounted Power Feed with an outlet box transformer. Many luminaire options are available as well, each generating a lighting effect that is both unique and useful.
Item Number
SNN856943
.
MFR ID
S1K36K-JR180612-SC02

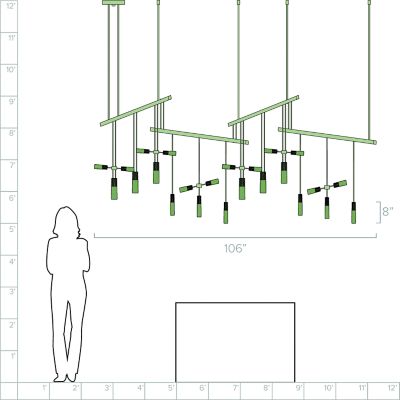

Suspenders™ 36" 5-Bar Zig Zag LED SuspensionTechnical Files and Diagrams
Diagrams
Suspenders™ 36" 5-Bar Zig Zag LED Suspension Technical Files and Diagrams
Diagrams
Dimensions
- CanopyHeight 0.63", Diameter 6"
- FixtureWidth 106", Depth 25"
Details
- Designed by Robert Sonneman in 2016
- AwardsIIDA/HD Product Design Award (2016)
- MaterialMetal
- Shade MaterialMetal
- DimmableYes
- DimmerNot Included
- Dimmer TypeELV Dimmer
- Sloped Ceiling AdaptableNo
- Installation TypeHardwired
- FinishSatin Black
- Location RatingETL Listed
- Assembly RequiredYes
- Warranty1 Year. 5 Year LED Components
- Made InChina
- Lighting StyleSoft/Diffused/Ambient
- Commercial and/or Residential Use
- Includes five 36 inch power bars with 3 uppers and 2 lower in a zig zag pattern
- Comes with two 18 inch rod ceiling hangers that can be cut in the field
- Consists of two 6 inch power bar hangers that join higher and lower bars
- Luminaire hangers are 12 inches
- Transformer: outlet box
- Total Lumens3565.0
- Volts120
- Color Temp3000 (Soft White)
- Lamp TypeLED Built-in
- CRI90
- Equivalent Halogen, CFL or LED Bulb Can Be UsedNo
- Total Wattage84.00
- Average Lifespan (Hours)50,000
Manufacturer IDs:
California Residents:
Rated 1.0 out of 5 stars
1
2017-07-27
Beautiful Light but does not put out enough Lumens
Rated 1 out of 5 stars
I love the look of the fixture. Very expensive. BUT was not satisfied with the output of lighting. Now that I have over $3500 invested, I am going to have to supplement the lighting in my conference room with some wall mounted indirect. Even after doing that, the five bar 15 light zig zag is SO DIM, it still may not be enough.
John Hall · 2017-07-27
Helpful: 0 Not helpful: 0
