8402 4" Non-IC New Construction Housing by WAC Lighting
http://www.lumens.com/Review.aspx?__BVSUBMISSIONPARAMETERS__
The WAC Lighting 8402 4" Non-IC New Construction Housing is a low voltage new construction downlight with a choice of an integral electronic or magnetic transformer. Housing and transformer arm are 20 gauge steel; housing is painted black. Electrical component within can is a bi-pin ceramic socket with 18 gauge Teflon insulated wires with fiberglass sleeves. This small-sized housing is compact enough to fit in 2"x6" joist installations, allowing these housings to be used in "shallow" applications such as 2-story houses or where attic space is used for storage. Use with the low voltage WAC Lighting 4" Trims.
In Stock
In Stock
In Stock
In Stock
Compare at: $84.00 - $90.00 $50.50Our Price: $50.50 - $54.00
You Save 40%
Please review selected options. One of the selected options is not available in this combination. Please make another selection. If you need assistance, please call Customer Service at 877-445-4486.
|
1.
Select
Transformer:
Electronic
|
Magnetic
|
|
Transformer
|
Details - Dimensions
The WAC Lighting 8402 4" Non-IC New Construction Housing is a low voltage new construction downlight with a choice of an integral electronic or magnetic transformer. Housing and transformer arm are 20 gauge steel; housing is painted black. Electrical component within can is a bi-pin ceramic socket with 18 gauge Teflon insulated wires with fiberglass sleeves. This small-sized housing is compact enough to fit in 2"x6" joist installations, allowing these housings to be used in "shallow" applications such as 2-story houses or where attic space is used for storage. Use with the low voltage WAC Lighting 4" Trims.
WAC Lighting, founded in 1984, has developed a strong reputation for high quality decorative and task lighting. Based in Garden City, New York, WAC Lighting is a leading manufacturer of low voltage, line voltage and LED lighting, including track systems, transformers, lamps, cabinet lighting and recessed downlights.
The WAC Lighting 8402 4" Non-IC New Construction Housing is available with the following:
Details:- Steel construction
- Non-IC rated: insulation must be kept at least 3" away from the housing
- 7 knockouts and 4 Romex style wiring connectors provided for ease of installation
- Supplied with hanger bars, adjustable from 12"-24" to accommodate various joist construction and grid sizes; hanger bars have nailers for wood joists as well as slots for easy mounting on T bars; Minimum span of 15" and maximum of 24"
- Suitable for branch and chain wiring
- Magnetic Transformer option features a 120 volt input transformer
- Magnetic Transformer option features long-life magnetic transformers with proven core and coil technology
- The Magnetic Transformer option is dimmable with magnetic low voltage dimmers (not included)
- Electronic transformer has advanced auto-reset, soft start and short circuit protection features; the soft start delayed lamp start feature extends lamp life by delaying the abrupt inrush current to the lamp
- The Electronic Transformer option is dimmable with electronic low voltage dimmers (not included)
- UL Listed for damp locations
Options:- Transformer: Electronic (shown), or Magnetic.
Lighting:
One 50 Watt 12 Volt Low-voltage Type MR16 Incandescent lamp (not included).
Shipping:
This item usually ships within five business days.

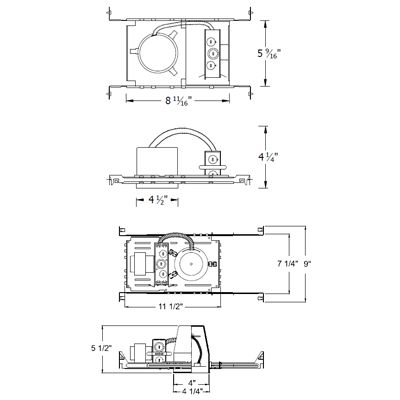

Dimensions:
Electronic Transformer: Diameter 4.25 In., Height 4.25 In., Cutout 4.56 In.
Magnetic Transformer: Diameter 4.31 In., Height 5.5 In., Cutout 4.38 In.
Need help with some of our terminology? Check out Lumens' Lighting & Design Glossary.
Diagram
