8402 4" Non-IC New Construction Housing

$54.00 - $58.00
Compare: $89.85 - $95.85
You Save: 40%
Select items in stock, choose options to view or check availability.
  • Facebook
  • Google+
  • Tweet
  • Pin It
  • Add It

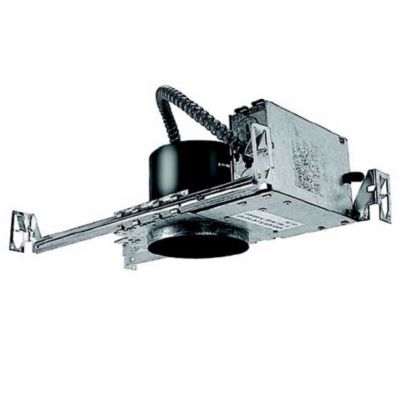

The WAC Lighting 8402 4" Non-IC New Construction Housing is a low voltage new construction downlight with a choice of an integral electronic or magnetic transformer. Housing and transformer arm are 20 gauge steel; housing is painted black. Electrical component within can is a bi-pin ceramic socket with 18 gauge Teflon insulated wires with fiberglass sleeves. This small-sized housing is compact enough to fit in 2"x6" joist installations, allowing these housings to be used in "shallow" applications such as 2-story houses or where attic space is used for storage.
Transformer:
Please Select an Option
1
Select Transformer:
  • Electronic
    Enlarge   Step1
    Electronic
    Selected
    This Option Not Applicable
  • Magnetic
    Enlarge   Step1
    Magnetic
    Selected
    This Option Not Applicable
Qty

Quantity Available:

8402 4" Non-IC New Construction Housing

Details

The WAC Lighting 8402 4" Non-IC New Construction Housing is a low voltage new construction downlight with a choice of an integral electronic or magnetic transformer. Housing and transformer arm are 20 gauge steel; housing is painted black. Electrical component within can is a bi-pin ceramic socket with 18 gauge Teflon insulated wires with fiberglass sleeves. This small-sized housing is compact enough to fit in 2"x6" joist installations, allowing these housings to be used in "shallow" applications such as 2-story houses or where attic space is used for storage.

WAC Lighting, founded in 1984, has developed a strong reputation for high quality decorative and task lighting. Based in Garden City, New York, WAC Lighting is a leading manufacturer of low voltage, line voltage and LED lighting, including track systems, transformers, lamps, cabinet lighting and recessed downlights.

The 8402 4" Non-IC New Construction Housing is available with the following:
Details:
  • Steel construction
  • Non-IC rated: insulation must be kept at least 3" away from the housing
  • 7 knockouts and 4 Romex style wiring connectors provided for ease of installation
  • Supplied with hanger bars, adjustable from 12"-24" to accommodate various joist construction and grid sizes; hanger bars have nailers for wood joists as well as slots for easy mounting on T bars; Minimum span of 15" and maximum of 24"
  • Suitable for branch and chain wiring
  • Magnetic Transformer option features a 120 volt input transformer
  • Magnetic Transformer option features long-life magnetic transformers with proven core and coil technology
  • The Magnetic Transformer option is dimmable with magnetic low voltage dimmers (not included)
  • Electronic transformer has advanced auto-reset, soft start and short circuit protection features; the soft start delayed lamp start feature extends lamp life by delaying the abrupt inrush current to the lamp
  • The Electronic Transformer option is dimmable with electronic low voltage dimmers (not included)
  • UL Listed for damp locations
Options:
  • Transformer: Electronic, Magnetic
Lighting:
  • One 50 Watt 12 Volt Low-voltage Type MR16 Incandescent lamp (not included).

Compare Brightness:

VIEW CHART

Lumens

The amount of light that comes from a bulb, which has commonly been measured in watts. The more lumens, the brighter the bulb.

Wattage

A measurement of the power delivered to a component of an electric circuit (allowing a one-ampere current to flow through the component under the pressure of 1 volt.)

Bulb Shape

Bulb shapes are denoted with a letter, which describes the shape, and a number, which indicates the size. The number indicates the diameter of the light bulb at its widest part in eighths of an inch.

Base

The part of the bulb that connects to the fixture and its power supply. Bulb bases are denoted with the letter E, and a number which indicates the diameter of the bulb base at its widest part in millimeters.

Voltage

Indicates how much voltage a bulb can accept via the fixture it's installed in.

Light Color Temperature

The relative color from a light source, measured on the Kelvin temperature scale. Warm light is lower in color temperature (2700-3000 K) and cool, blue light is higher (5000 K).

Average Rated Life

The average amount time that a bulb is expected to last.

CRI

CRI = color rendering index. This number, which can go from 0 to 100, measures the ability of a light or bulb accurately renders colors. The higher the number, the better, with most quality bulbs these days measuring at least in the 80s.
Dimensions:
  • Electronic Transformer Option Fixture: Height 4.25"
  • Magnetic Transformer Option Fixture: Height 5.5"
  • Electronic Transformer Option Fixture: Diameter 4.25"
  • Magnetic Transformer Option Fixture: Diameter 4.31"
  • Electronic Transformer Option Fixture: Cutout 4.56"
  • Magnetic Transformer Option Fixture: Cutout 4.38"

Need help with some of our terminology? Check out Lumens' Lighting & Design Glossary.
