3" 800 Series Housing by WAC Lighting
http://www.lumens.com/Review.aspx?__BVSUBMISSIONPARAMETERS__
The WAC Lighting 3" 800 Series Housing is a low voltage miniature New Construction or Remodel Downlight Housing with an integral electronic transformer. It is designed for low profile applications. It is a 20 gauge steel small-sized housing that is compact enough to fit in 2"x6" joist installations, allowing it to be used in "shallow" applications. This housing is designed to be used with the low voltage WAC Lighting 3" Trims.
Compare at: $89.85 - $95.85 Our Price: $53.91 - $57.51
You Save 40%
Please review selected options. One of the selected options is not available in this combination. Please make another selection. If you need assistance, please call Customer Service at 877-445-4486.
|
1.
Select
Type:
New Construction
|
Remodel
|
|
Type
|
Details - Dimensions
The WAC Lighting 3" 800 Series Housing is a low voltage miniature New Construction or Remodel Downlight Housing with an integral electronic transformer. It is designed for low profile applications. It is a 20 gauge steel small-sized housing that is compact enough to fit in 2"x6" joist installations, allowing it to be used in "shallow" applications. This housing is designed to be used with the low voltage WAC Lighting 3" Trims.
The 3" 800 Series New Construction Housing is a low voltage new construction downlight with an integral electronic transformer for ceilings, soffits, and other low profile applications. Housing and junction box are 20 gauge steel, painted black. Frame and hanger bars are heavy gauge galvanized steel. The electrical component within can is a bi-pin ceramic socket with 18 gauge Teflon insulated wires with fiberglass sleeves. The New Construction Housing option includes captive hanger bars, with 15" minimum span and 24.5" maximum span. Hanger bars have slots for easy mounting on T bars; with a 3" cutout hole.
The 3" 800 Series Remodel Housing is a low voltage remodeling style housing with integral electronic transformer for cabinets, displays, soffit, and similar low profile applications. The Remodel Housing is 20 gauge galvanized steel, painted black. Electrical components within the can are a bi-pin ceramic socket with nickel plating and 18 gauge Teflon insulated wires with fiberglass sleeves.
WAC Lighting, founded in 1984, has developed a strong reputation for high quality decorative and task lighting. Based in Garden City, New York, WAC Lighting is a leading manufacturer of low voltage, line voltage and LED lighting, including track systems, transformers, lamps, cabinet lighting and recessed downlights.
The WAC Lighting 3" 800 Series Housing is available with the following:
Details:- Steel construction
- Integral electronic transformer
- Electronic transformer features auto-reset, short-circuit, and soft start technologies
- Low voltage operates more efficiently than incandescent, with energy savings of approximately 66 percent
- UL Listed for direct chain wiring to other housings
- UL Listed for damp locations
Options:- Type: New Construction (shown), or Remodel.
Lighting:
One 50 Watt 12 Volt Low-voltage Type MR16 Incandescent lamp (not included).
Shipping:
This item usually ships within five business days.

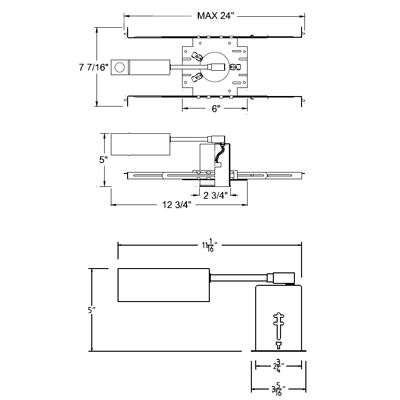

Dimensions:
New Construction Housing: Diameter 2.81 In., Height 5 In.
Remodel Housing: Diameter 2.75 In., Length 11.63 In., Height 5 In.
Diagram
